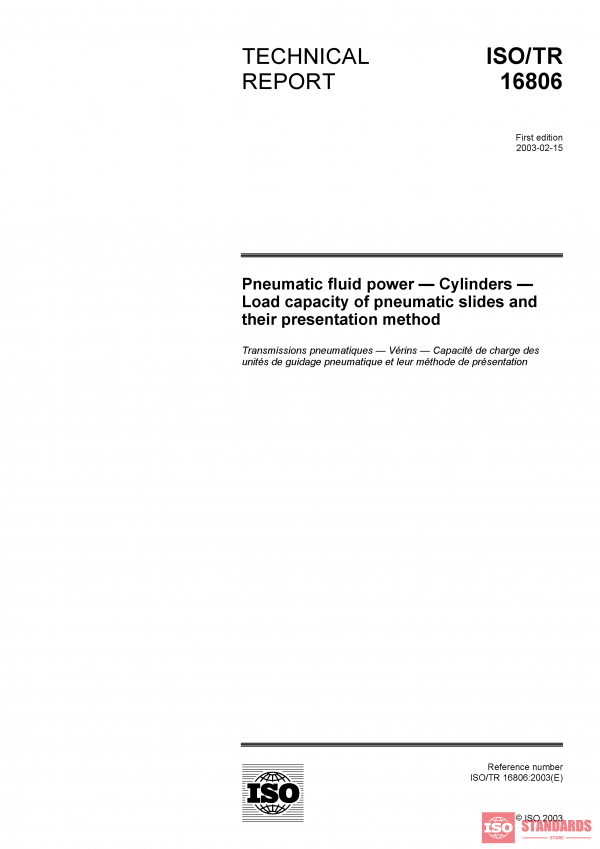

ISO/TR 16806:2003 PDF
Original price was: $65.00.$50.70Current price is: $50.70.
Pneumatic fluid power — Cylinders — Load capacity of pneumatic slides and their presentation method
ISO/TR 16806:2003 describes how to calculate the loading limits for a pneumatic slide based upon external forces applied in the three principle planes of a tool plate, and applied at any point; external torque applied in the three principle planes of a tool plate; and bearing limits determined by the slide manufacturer in conjunction with the bearing supplier. It also describes how to calculate tool plate deflections due to the loads.
ISO/TR 16806:2003 describes how to present the rating information in technical documentation for application by a user.
| Edition | 2003 |
|---|---|
| Published Date | 2003 |
| Published By | International Standardization Organisation/Technical Reference |
| Page Count | 12 |
