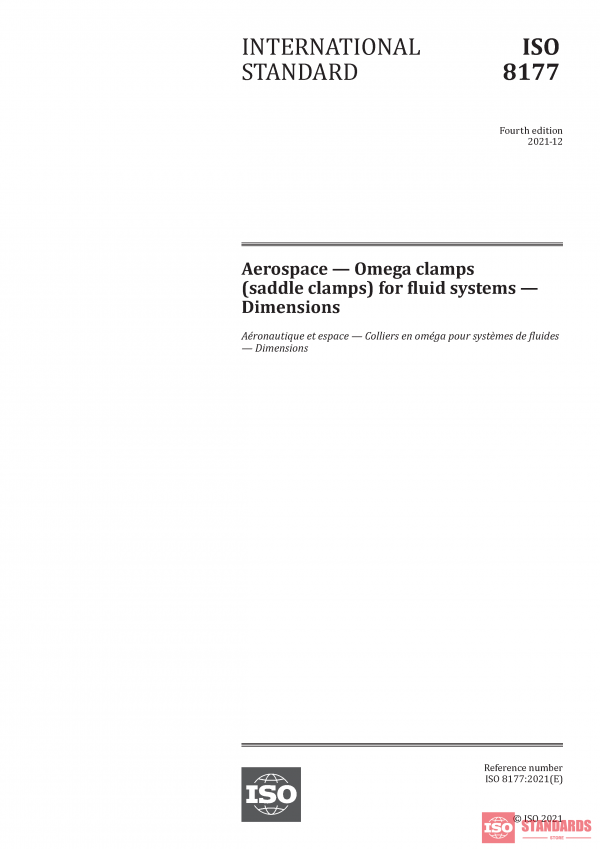

ISO 8177:2021 PDF
Original price was: $43.00.$33.54Current price is: $33.54.
Aerospace — Omega clamps (saddle clamps) for fluid systems — Dimensions
This document specifies maximum and minimum dimensions for omega clamps (saddle clamps) installed by means of two bolts with nominal diameters of 5?mm.
The specified dimensions define a dimensional envelope. This document is not an interchangeability standard. The tolerances for each type of clamp are defined in the drawings in the standards for parts.
| Edition | 2021 |
|---|---|
| Published Date | 2021 |
| Published By | International Standardization Organisation |
| Page Count | 4 |
