ISO 6412-1:1989 PDF
Original price was: $65.00.$50.70Current price is: $50.70.

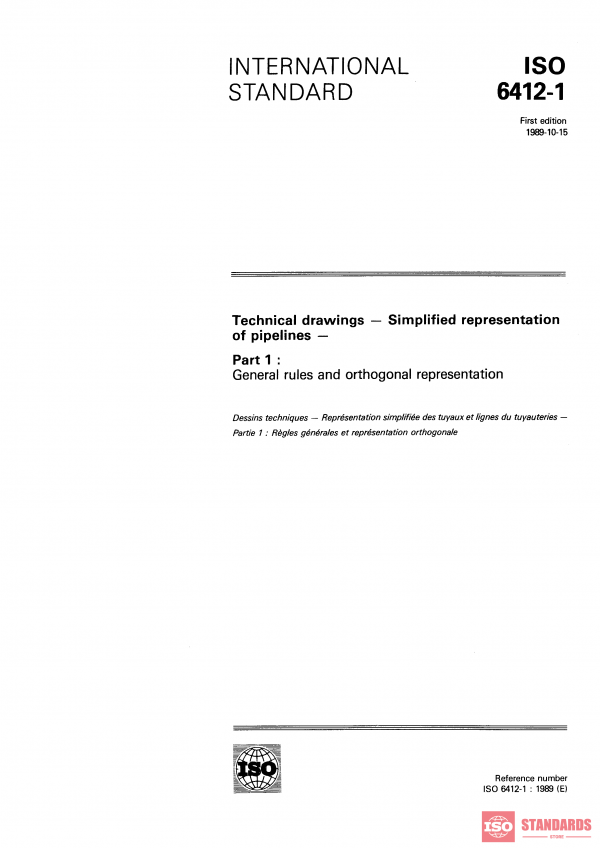

Technical drawings — Simplified representation of pipelines — Part 1: General rules and orthogonal representation
This part deals with rules common to orthogonal and isometric representation. Rules applicable only to isometric representation are given in part 2. All sorts of pipe materials (rigid and flexible) are covered. The figures only illustrate the text and should not be considered dessign examples Annex A contain the bibliography and is for information only.
| Edition | 1989 |
|---|---|
| Standard Part No | 1 |
| Published Date | 1989 |
| Published By | International Standardization Organisation |
| Page Count | 9 |
