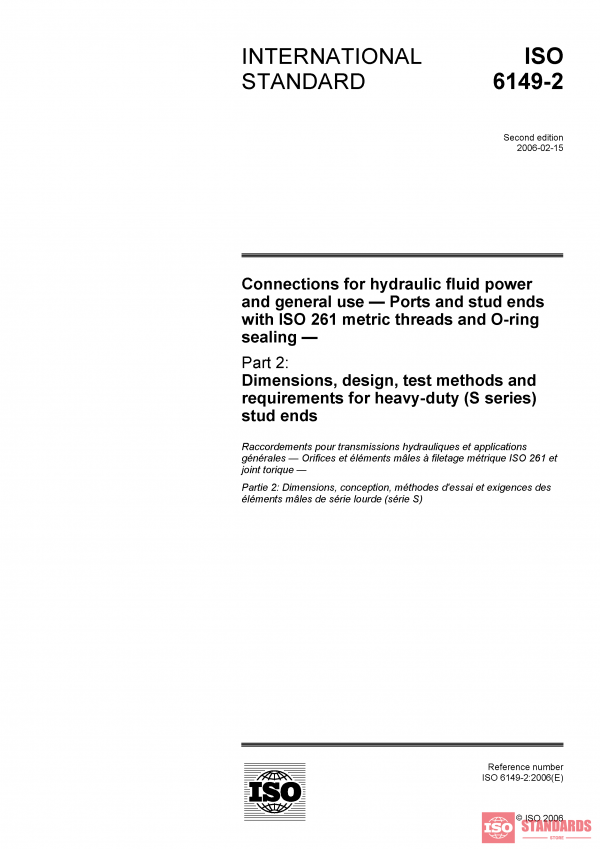

ISO 6149-2:2006 PDF
Original price was: $65.00.$50.70Current price is: $50.70.
Connections for hydraulic fluid power and general use — Ports and stud ends with ISO 261 metric threads and O-ring sealing — Part 2: Dimensions, design, test methods and requirements for heavy-duty (S series) stud ends
ISO 6149-2:2006 specifies dimensions, performance requirements and test procedures for metric adjustable and non-adjustable heavy-duty (S series) stud ends and O-rings.
Stud ends in accordance with ISO 6149-2:2006 may be used at working pressures up to 63 MPa (630 bar) for non-adjustable stud ends and 40 MPa (400 bar) for adjustable stud ends. The permissible working pressure depends upon the stud end size, materials, design, working conditions, application, etc.
| Edition | 2006 |
|---|---|
| Standard Part No | 2 |
| Published Date | 2006 |
| Published By | International Standardization Organisation |
| Page Count | 11 |
