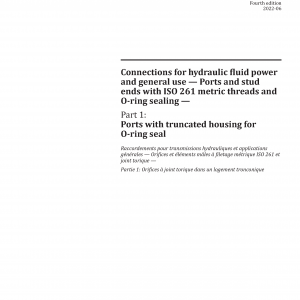

Connections for hydraulic fluid power and general use — Ports and stud ends with ISO 261 metric threads and O-ring sealing — Part 1: Ports with truncated housing for O-ring seal
This document specifies dimensions for metric ports for use with the adjustable and non-adjustable stud ends as described in ISO?6149-2 and ISO?6149-3.
Ports in accordance with this document can be used at working pressures up to 63 MPa (630 bar[1]) for non-adjustable stud ends and 40?MPa (400?bar) for adjustable stud ends. The permissible working pressure depends upon port size, materials, design, working conditions, application, etc. See ISO?6149-2 and ISO?6149-3 for pressure ratings.
NOTE????? The Introduction of this document gives recommendations for ports and stud ends to be used for new designs in hydraulic fluid power applications.
[1] 1 bar = 0,1 MPa = 105?Pa; 1?MPa?=?1?N/mm2.
| Edition | 2022 |
|---|---|
| Standard Part No | 1 |
| Published Date | 2022 |
| Published By | International Standardization Organisation |
| Page Count | 6 |
