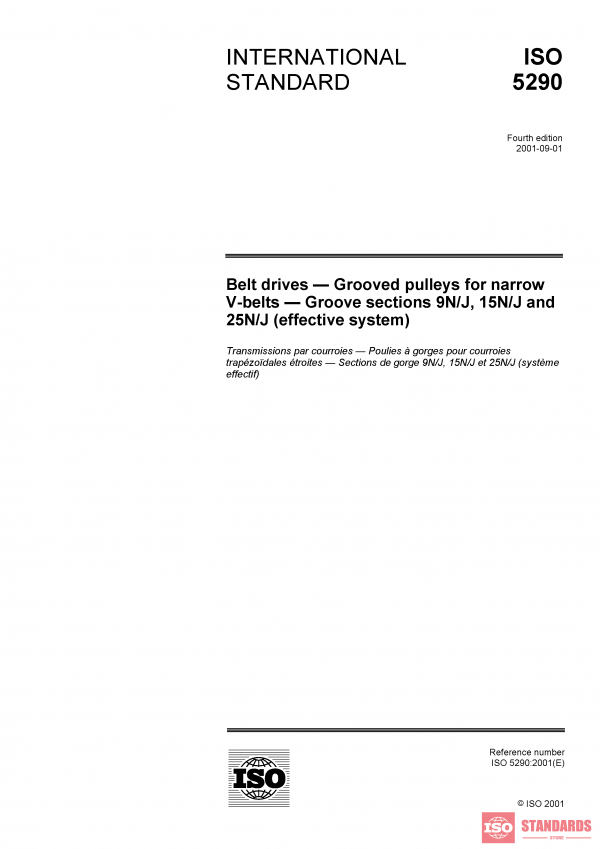

ISO 5290:2001 PDF
Original price was: $65.00.$50.70Current price is: $50.70.
Belt drives — Grooved pulleys for joined narrow V-belts — Groove sections 9N/J, 15N/J and 25N/J (effective system)
This International Standard specifies the principal characteristics of grooved pulleys (for groove sections 9N/J,
15N/J and 25N/J) intended to take both single and joined narrow V-belts for industrial power transmission drives.
Some background information on the series of effective diameters is given in annex A.
NOTE The effective width of a groove is regarded as the basic dimension of standardization in the effective system for
grooves and for the corresponding narrow V-belts considered as a whole.
| Edition | 2001 |
|---|---|
| Published Date | 2001 |
| Published By | International Standardization Organisation |
| Page Count | 10 |
