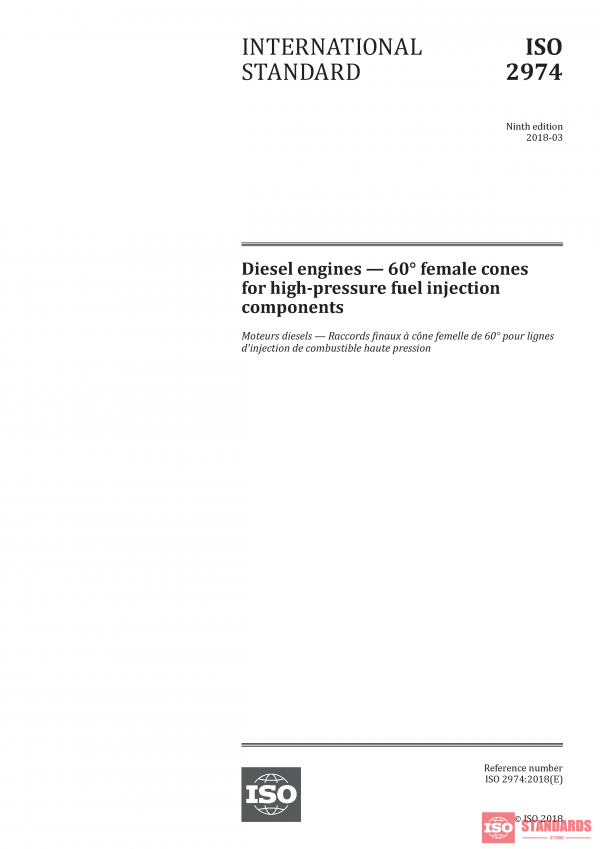

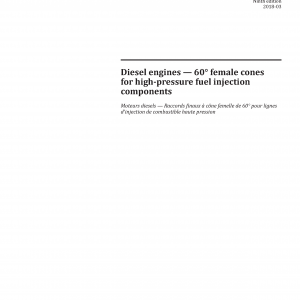

ISO 2974:2018 PDF
Original price was: $65.00.$50.70Current price is: $50.70.
Diesel engines — 60° female cones for high-pressure fuel injection components
ISO 2974:2018 specifies the dimensional requirements of end-connections for high-pressure fuel injection equipment components, used on diesel (compression-ignition) engines.
ISO 2974:2018 is applicable to externally threaded 60° female cones (see Figures 1, 2, 5, and 6) and intended for use with high-pressure fuel injection pipe assemblies with tube outside diameters of:
– up to and including 12 mm for integral female cones (see Table 1); and
– up to and including 9 mm for fabricated female cones (see Table 2).
Details of the pipe connection ends referenced in this document are shown in ISO 13296.
| Edition | 2018 |
|---|---|
| Published Date | 2018 |
| Published By | International Standardization Organisation |
| Page Count | 10 |
