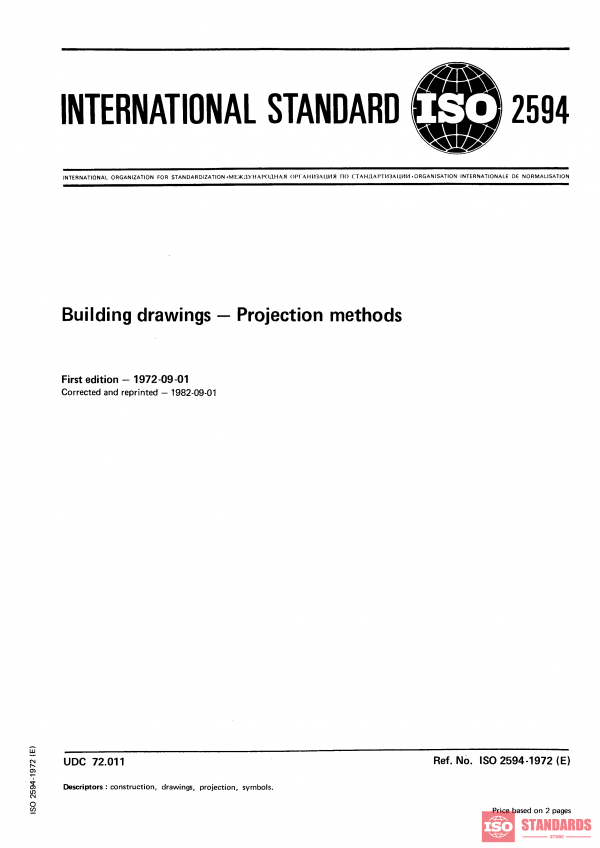

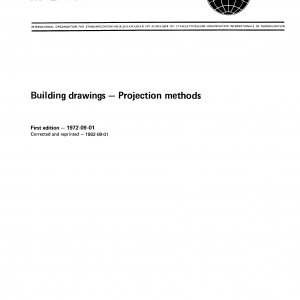

ISO 2594:1972 PDF
Original price was: $65.00.$50.70Current price is: $50.70.
Building drawings — Projection methods
Two methods are defined and the symbols specified as shown in the figures. The direct orthogonal projection is symbolized by two parallel arrows running vertically to a dash-and-dot line, and the mirror-inverted orthogonal projection by two parallel double arrows running vertically to a dash-and-dot line.
| Edition | 1972 |
|---|---|
| Published Date | 1972 |
| Published By | International Standardization Organisation |
| Page Count | 2 |
