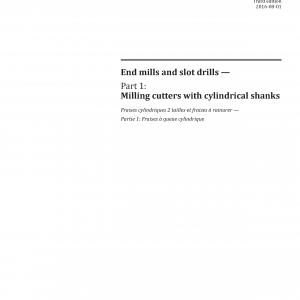

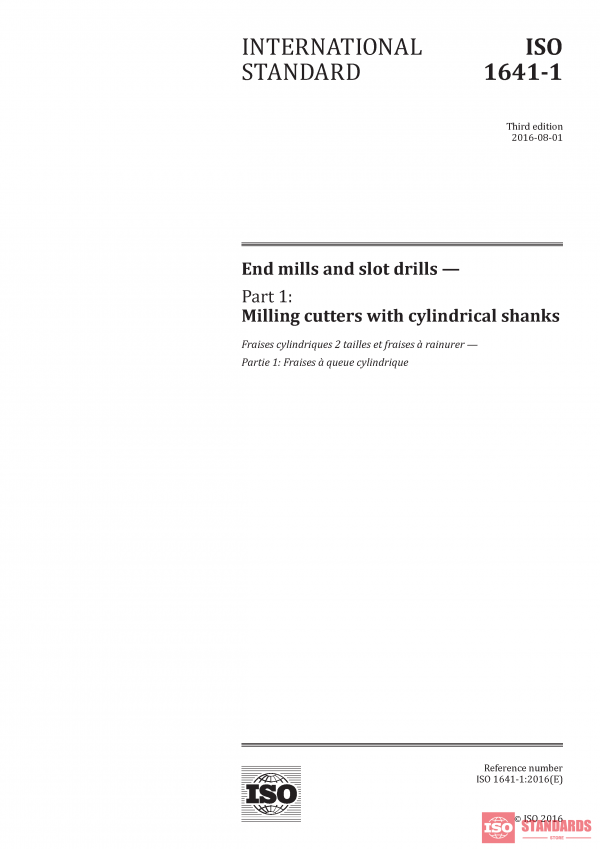

ISO 1641-1:2016 PDF
Original price was: $43.00.$33.54Current price is: $33.54.
End mills and slot drills — Part 1: Milling cutters with cylindrical shanks
ISO 1641-1:2016 specifies the general dimensions of the following milling cutters with plain cylindrical, flatted cylindrical and threaded shanks:
– end mills, flat-ended or ball-nosed: standard series and long series;
– slot drills : short series and standard series.
The dimensional characteristics of cylindrical shanks are in accordance with ISO 3338-1, ISO 3338-2 and ISO 3338-3.
NOTE These same milling cutters with Morse taper shanks having a tapped hole are dealt with in ISO 1641-2, those with 7/24 taper shanks in ISO 1641-3.
ISO 1641-1:2016 does not apply to solid hard metal end mills and slot drills.
| Edition | 2016 |
|---|---|
| Standard Part No | 1 |
| Published Date | 2016 |
| Published By | International Standardization Organisation |
| Page Count | 6 |
