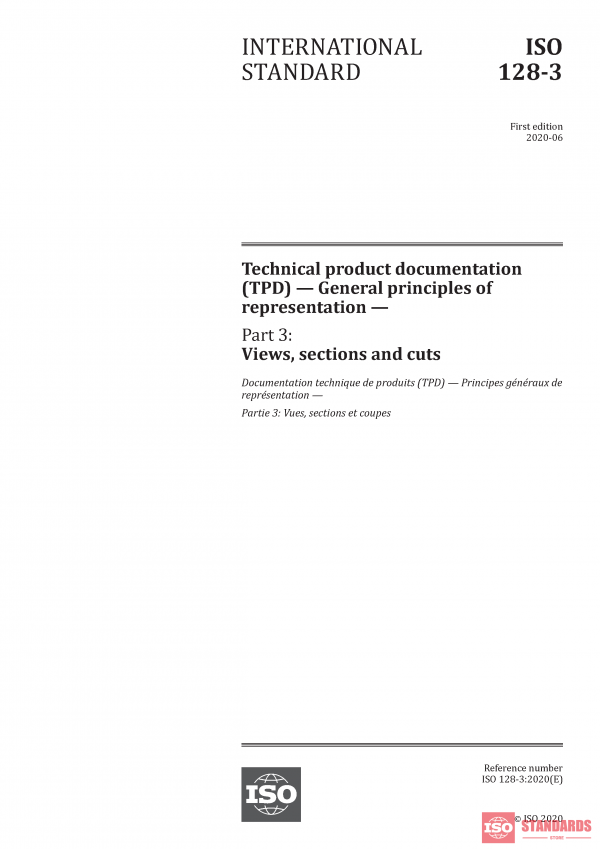

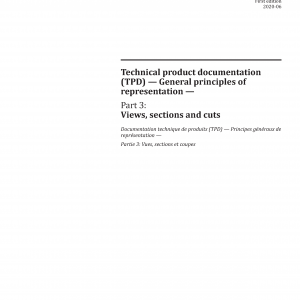

Technical product documentation (TPD) — General principles of representation — Part 3: Views, sections and cuts
This document specifies the general principles for presenting views, sections and cuts applicable to various kinds of technical drawings (e.g. mechanical, electrical, architectural, civil engineering), following the orthographic projection methods specified in ISO 5456-2. Views and sections for shipbuilding technical drawings are discussed in ISO 128-15. Views and sections for 3D models are discussed in ISO 16792.
Attention has also been given in this document to the requirements of reproduction, including microcopying in accordance with ISO 6428.
| Edition | 2020 |
|---|---|
| Standard Part No | 3 |
| Published Date | 2020 |
| Published By | International Standardization Organisation |
| Page Count | 48 |
