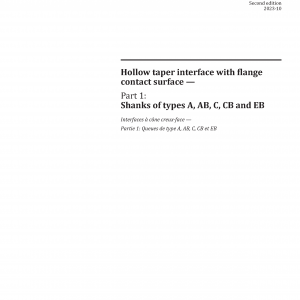

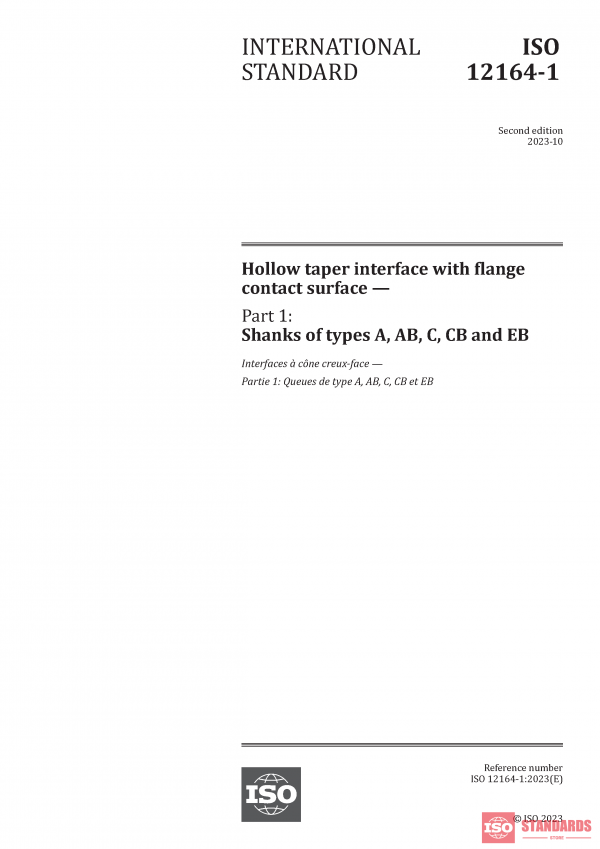

ISO 12164-1:2023 PDF
Original price was: $177.00.$138.06Current price is: $138.06.
Hollow taper interface with flange contact surface — Part 1: Shanks of types A, AB, C, CB and EB
This document specifies the dimensions of hollow taper shanks with flange contact surface (HSK). These shanks are the male part of the interface to the machine tools (e. g. milling/drilling, turning and grinding machines).
This document specifies five types of shanks:
—???? types A, AB and EB have a peripherally grooved flange for automatic tool change;
—???? types C and CB have a flange without peripheral groove and can only be changed manually.
HSK types A and AB can also be changed manually via radial access bore holes in the hollow shank tapers.
This document provides information for dynamically balanced HSK-AB and HSK-CB shanks balancing according to ISO?16084.
| Edition | 2023 |
|---|---|
| Standard Part No | 1 |
| Published Date | 2023 |
| Published By | International Standardization Organisation |
| Page Count | 44 |
